Product Description

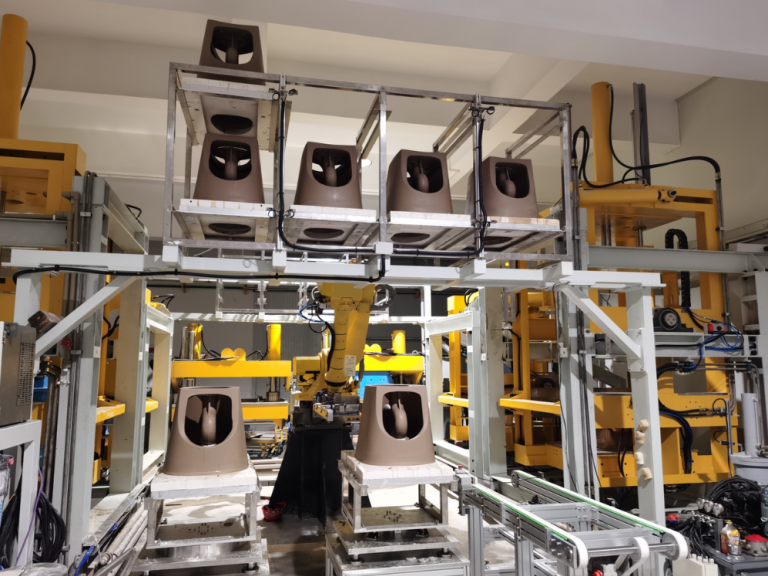

Fig 1：High pressure casting machine

High pressure molding equipment is suitable for the production of sanitary ceramic products, solve the traditional manual bonding process, replace the technical work. Can be single and multiple combined operation mode, using advanced automation and humanized human-machine interface, simple operation, greatly improve the work efficiency, compared with traditional low-voltage equipment, production efficiency increased by 20 times.

Functional use:

1. reduce the labor intensity of workers, save the floor area, regular degree is good, the same capacity, the production area is reduced by 4 times.
2. the qualified rate of the body is more than 95%, the water content of the body is low, and the energy consumption of the body is reduced.
3. the equipment has the advantages of easy start, stable operation, low noise, low energy consumption, flexible operation, easy maintenance, less failure, long life and so on.

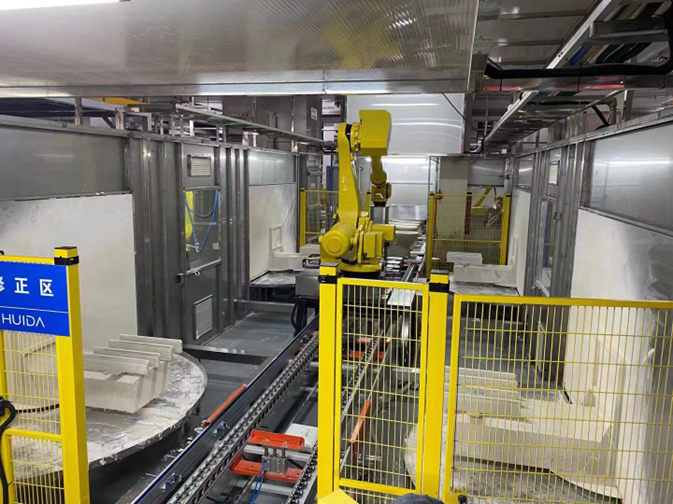

Fig.2：Glazing equipment workstation

This glazing spraying robot system takes the lead in realizing the entire glazing process in China:  the fully automated flexible production line of “pipe glazing, water distribution, water tank inside, outside surface, intelligent and clean glaze”, the production line can adapt to the flexible automatic production of multiple varieties and multiple process parameters, and the technical indicators such as production efficiency, output, precision, quality and glaze utilization rate are leading in China.

Functional use:

1.  can greatly improve work efficiency.  After the test, the robot spray glaze toilet only takes 70-90 seconds.
2. reduce the labor intensity of workers.  Spraying glaze robot system can be used with palletizing robot, conveying device, assisting manipulator and other devices to reduce the labor intensity of workers.
3. high utilization rate of glaze, can reduce production costs.  It can save about 10% of the glaze, and only one item in a production line – it can save about 800,000 yuan a year.

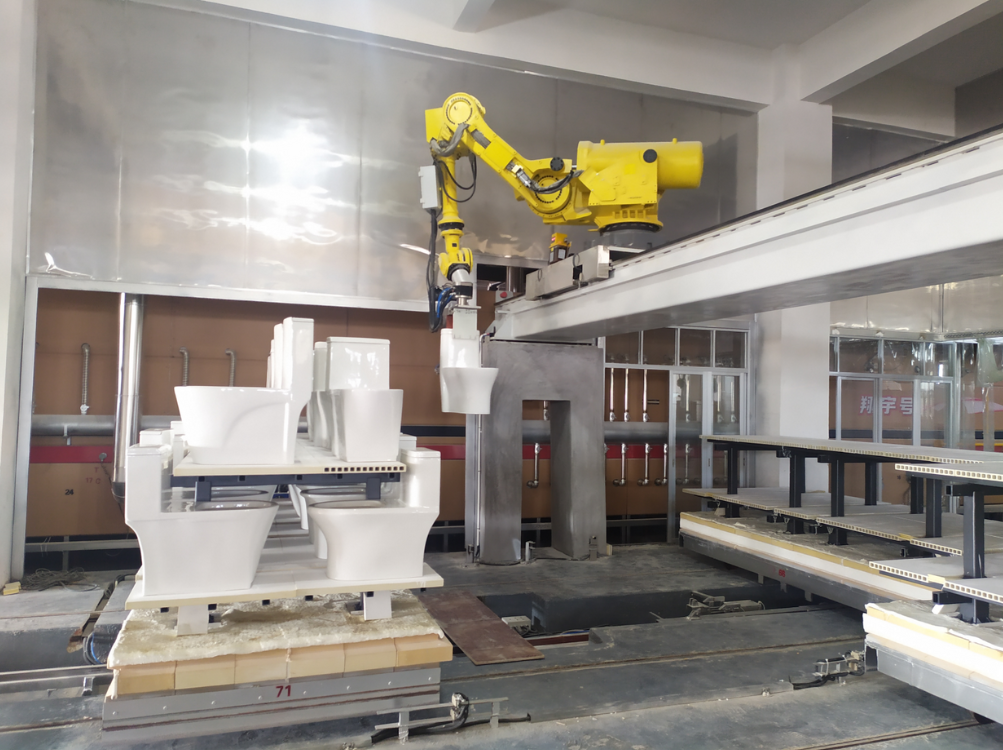

Fig.3：Loading kiln equipment workstation

The robot loading and unloading kiln system includes semi-finished product conveying line, shed plate conveying line, finished product conveying line and kiln car conveying line.   The loading and unloading kiln action, shed plate conveying and kiln car transporting process are completed by the equipment, which can realize the loading and unloading kiln process of sanitary porcelain products unmanned, simplify the production process, improve the production efficiency.   The loading and unloading kiln action adopts servo control, stable action and high repeatability.   Greatly reduce the damage rate of semi-finished products, avoid economic losses, and promote the improvement of the level of production equipment in the sanitary ceramic industry, in the current situation of human resources, the use of equipment has great practical significance

Functional use:

1. to achieve the kiln car toilet fixed loading and unloading;   Can realize remote control;   And the manipulator and the kiln car and the transmission line can signal interaction, automatic production, greatly improve production capacity, more safe, environmental protection, and reduce human input.
2. Hoisting operation adopts servo motor drive system, stable movement, accurate accuracy, fast response, small inertia, high-speed starting, braking and reversing.
